Long Range 2.4GHz Wireless Module based on Semtech SX1281 LoRa® Transceiver

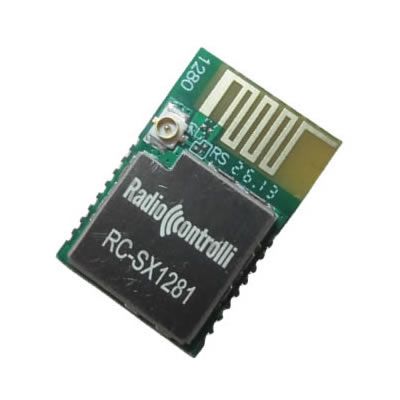

RC-SX1281 is a compact 2.4 GHz wireless transceiver module based on the Semtech SX1281 LoRa® device. The module integrates the RF circuitry, 52 MHz TCXO, impedance matching network and antenna interface, providing a complete ready-to-use solution for long-range and ultra-low-power wireless applications.The module is designed to minimize RF design effort and accelerate time-to-market.

DATASHEET
