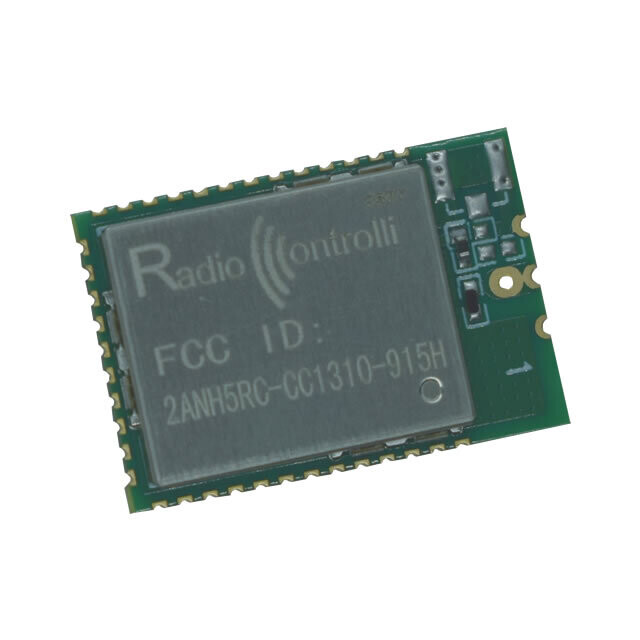

RC-CC1310-915-H

Store/IoT Modules (Texas Instruments based)

Product Details

Ultra Low Power sub 1GHz Multichannels Radio Transceiver

The RC-CC1310-XXX-H module is based on Texas Instruments CC1310F128 component. This device combines a flexible, very low power RF transceiver with a powerful 48 MHz Cortex M3 microcontroller in a platform supporting multiple physical layers and RF standard.

N.3 Versions available :

- RC-CC1310-434 Freq. : 433MHz (CE RED Certified)

- RC-CC1310-868 Freq. : 868MHz (CE RED Certified)

- RC-CC1310-915 Freq. : 915MHz (FCC Certified)

Sub-1Ghz technology is becoming one of the chief driving forces behind the Internet of Things (Iot) the main benefits of this technology are:

The low power consumption has always been the predominant feature of the sub 1GHz applications, with new technologies we consumption in sleep mode of less than 1 uA. The consumption of this device is 5.5mA when receiving and 23.5mA when transmitting at +14dBm (13.4mA at +10dBm) in sleep mode the consumption is 0.6µA (microamps).

The Long Range has become a reality because with new technology you can reach distances of several kilometers in addition, by occupyng the ISM bands in the wireless spectrum belo 1 GHz, this communication avoids the much more crowded band at 2.4 GHZ, where Wi-Fi, Bluetooth, ZigBee and other wireless protocols operate.

The sensitivity parameter is -110dBm at data rates of 50 kbps and down to -124dBm when the data rate is 0.625kbps.Interference from other wireless communications can be overcome with 90dB of blocking. The RF output power levels can reach up to +14dBm. All this ensure a robust signaling for long range communications.

Ready for use Small Size for SMD mounting (Dimensions 15x 22mm) - Metal shield

868MHz and 433MHz versions are CE CERTIFIED (Radio Equipment Directive 2014/53/EU)

915MHz version is FCC CERTIFIED.

**Download datasheet**
Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	1.8	3.0	3.80	Volt
Supply Current RX mode		5.5		mA
Supply Current TX mode -----> +10dBm		13.4		mA
Supply Current TX mode -----> +14dBm		23.5		mA
Supply Current Standby Mode		0,7		µA
Supply Current Shut Down Mode		185		nA
Operative Frequency		434/868/915		MHz
Frequency error		±10		ppm
RF Power Output 50ohm (programmable parameter)	-10		+14	dBm
RF Sensitivity 50kbps		-110		dBm
RF Sensitivity long range mode 625bps		-124		dBm
Data Rate (programmable parameter)	0,01		4	Mbit/s
Operating Temperature range	-30		+75	°C
