Professional wireless door control system - 433 MHz.

Full software control, no wiring, fast installation

- No wiring between devices

- Advanced configuration via PC

- Ideal for retrofit and new installations

The RC‑DCK‑433 Wireless Door Control Kit is a professional RF solution designed to control and activate automatic doors, gates and access systems.

It eliminates wiring between control devices and automation systems, reducing installation time, costs and complexity.

Ideal for both retrofit and new installations.

✅ No wiring installation

✅ Full software configuration

✅ Maximum flexibility

✅ Reliable 433MHz RF technology

✅ Reduced installation errors

The system operates in the 433 MHz band, a well‑established standard for short and medium‑range wireless communications.

It guarantees :

- high stability

- long-term reliability

- resistance to interference.

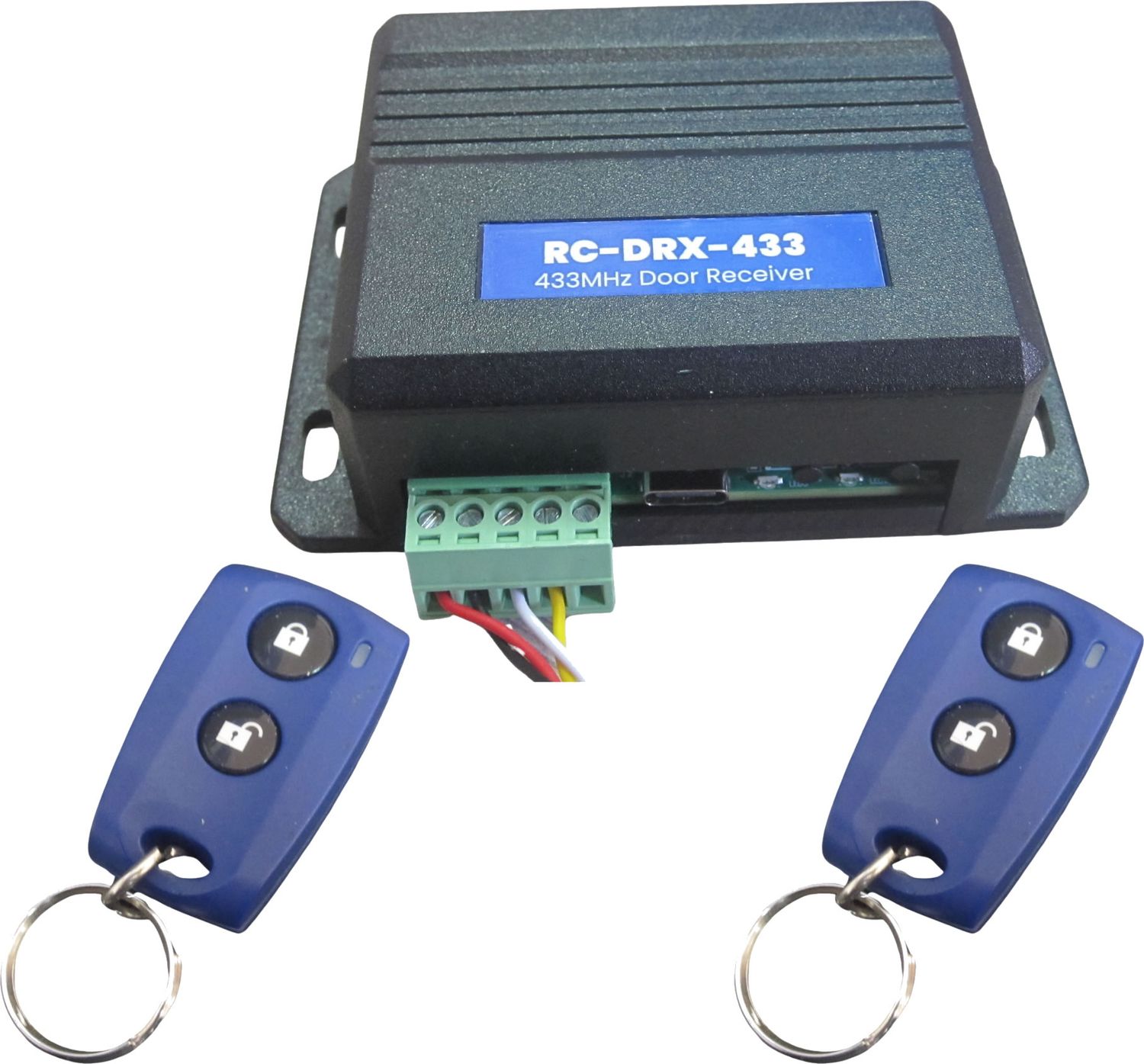

The kit includes:

• RC‑DRX‑433 digital receiver
• RCTV‑08 wireless remote controls
• Connection wiring

The solution is designed to offer maximum flexibility in installation and configuration, adapting to a wide range of application scenarios.

The RC‑DCK‑433 stands out for its modern and professional approach to configuration:

Advanced software configuration

✅ Full configuration via USB‑C interface

✅ Programming through dedicated software

✅ Management of remote controls, operating modes and timing parameters directly from a PC

✅ Immediate diagnostics and system operation verification

This ensures in:

• Greater precision
• Repeatable configurations
• Reduced installation errors
• Easy maintenance and updates

Ideal solution to replace complex wired systems and drastically reduce installation time and costs.

BROCHURE	DATASHEET

Product Description :

Technical Parameters :

Mechanical Dimensions :

Device Operating Mode :

On each receiving device, up to 100 RCTV-08 type remote controls can be configured. Each button of the remote control can be configured independently. There are three possible operating modes: 1) DIRECT MODE 2) PULSE MODE 3) CONTINUOS MODE

DIRECT MODE

BUTTON 1 allows the relay to be closed directly, while BUTTON 2 allows the relay to be opened.

In both cases, it is possible to program a delay for both relay activation and relay deactivation.

This delay can be set to a variable time ranging from 1 to 250 seconds.

This timing can be used, for example, to open or close a gate after a preset delay.

The two relay timing parameters can be programmed independently: relay activation time (T1) and relay deactivation time (T2).

PULSE MODE

It is possible to program both the delay time T1 and the pulse time T2.

This functionality applies to both buttons on the remote control: Button 1 and Button 2.

The T1 parameter can be set from 0 to 250 seconds, while the T2 parameter can be set from 1 to 250 seconds.

CONTINUOS MODE

In this operating mode, when a button on the remote control is pressed, the relay is activated and remains active as long as the button is held down.
