| Quantity | Price per item | Discount |
| 10 items | €1,70 | 15% off |
| 25 items | €1,50 | 25% off |
| 40 items | €1,20 | 40% off |

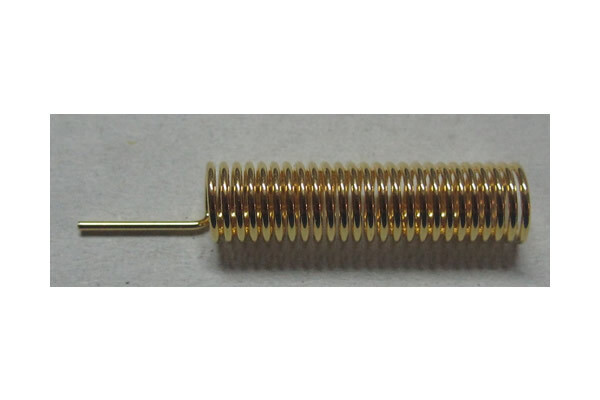

RC-ANT2-434-EL is a helical antenna that can be used for 433.92MHz wireless data transmission / meter communication systems.
Good VSWR performance, compact dimensions, clever structure, easy installation, stable performance, with good anti-vibration and aging capacity.
| Characteristics | Value |
| Frequency range | 433MHz±5MHz |
| VSWR | <=1.8 |
| Input Impedence | 50 Ohm |
| Gain | 0 dBi |

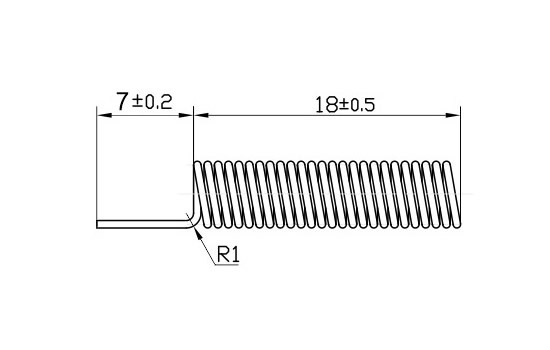

| Diameter | 0.5mm |
| Lenght | 18mm ± 0.5mm |
| Height | 4.5mm ± 0.5mm |
| Number of coils | 25 |
