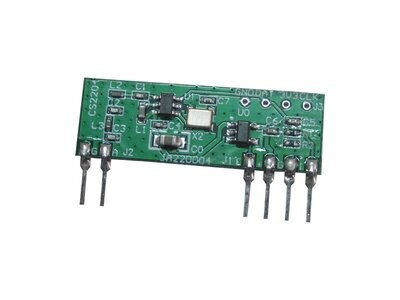

Name: RC-TFSK3-434 - 433.92MHz FSK Radio Transmitter Module
SKU: RC-TFSK3-434
Price: 8.0 EUR
Availability: InStock

IoT Modules,RF Modules,LoRa Modules, Radio Modem,Transceiver Module,TI module, STMicroelectronics module,Capacitive Rain Sensor

RADIOCONTROLLI SRL

Radiocontrolli SRL Via Santagata 73 Santa Maria C.V. (CE) ITALY

Facebook

X (former Twitter)

YouTube

Technical Characteristics	MIN	TYP	MAX	UNIT
Supply Voltage	2.4		3.6	Volt
Current Consumption (TX Mode)		14.5	15.5	mA
Current Consumption (Standby mode)			100	nA
Frequency		433.92		MHz
Max Data Rate			40	Kbit/s
RF Output Power	8		10	dBm
Frequency Accuracy	-35		+35	KHz
FM Deviation	25	30	35	KHz
Power Up Timer (from Power on to RF)			5	ms
Power Up Timer (from EN to RF)			1	ms
Operating Temperature range	-25		+80	°C
Mechanical Dimensions 11.43 x 20.32mm
